C-Shine Curved LED Screen For Stage (P1.9~4.81)

Product Demo:

Product Features:

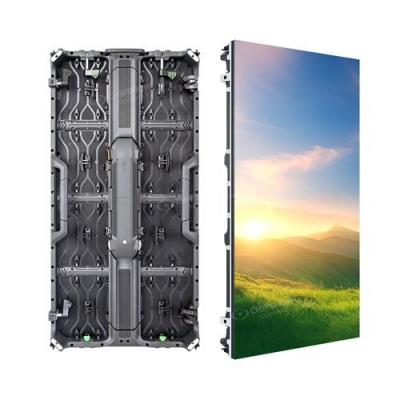

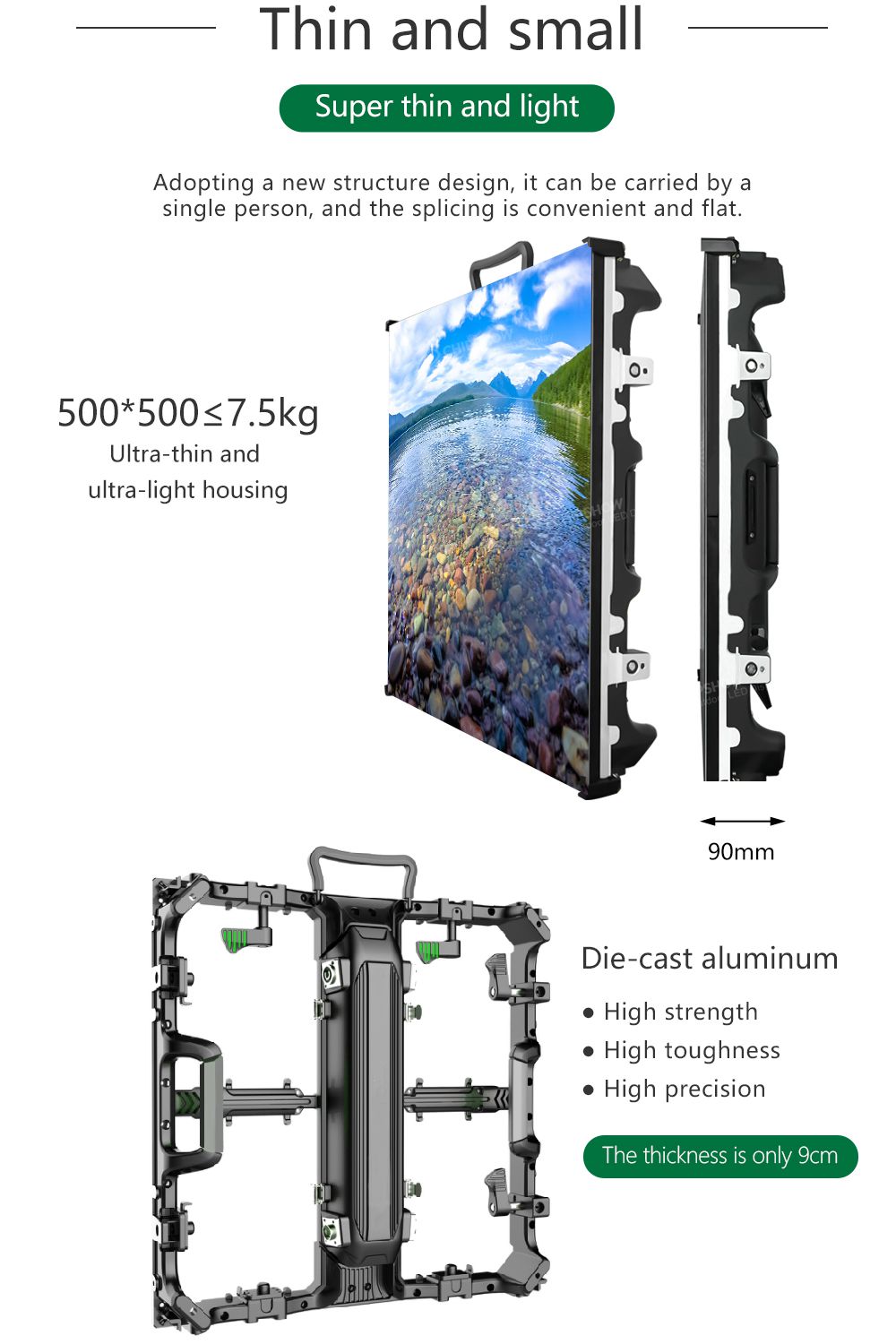

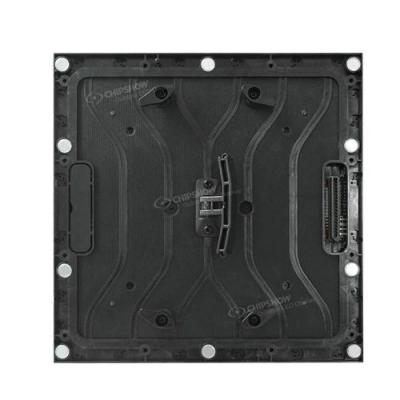

1 The cabinet adopts high-accuracy die-casting aluminum; the ultra-thin and ultra-light cabinet design will bring users a lot of convenience during transportation or installation of the screens; (for example, cabinet weight (size:500*500mm, thickness:90mm) ≤7.5KG,)

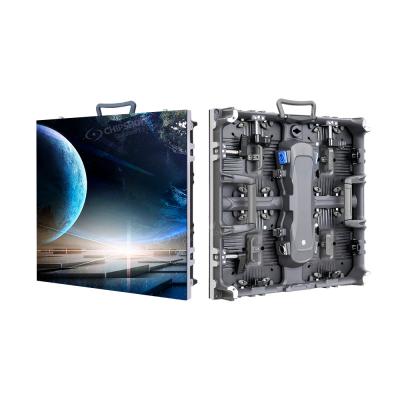

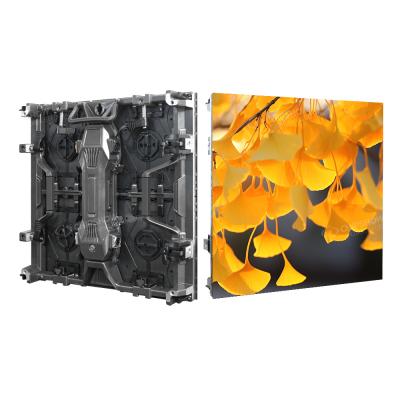

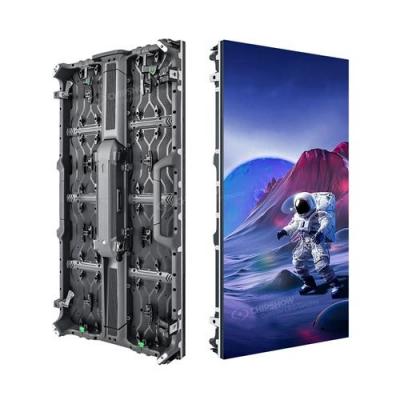

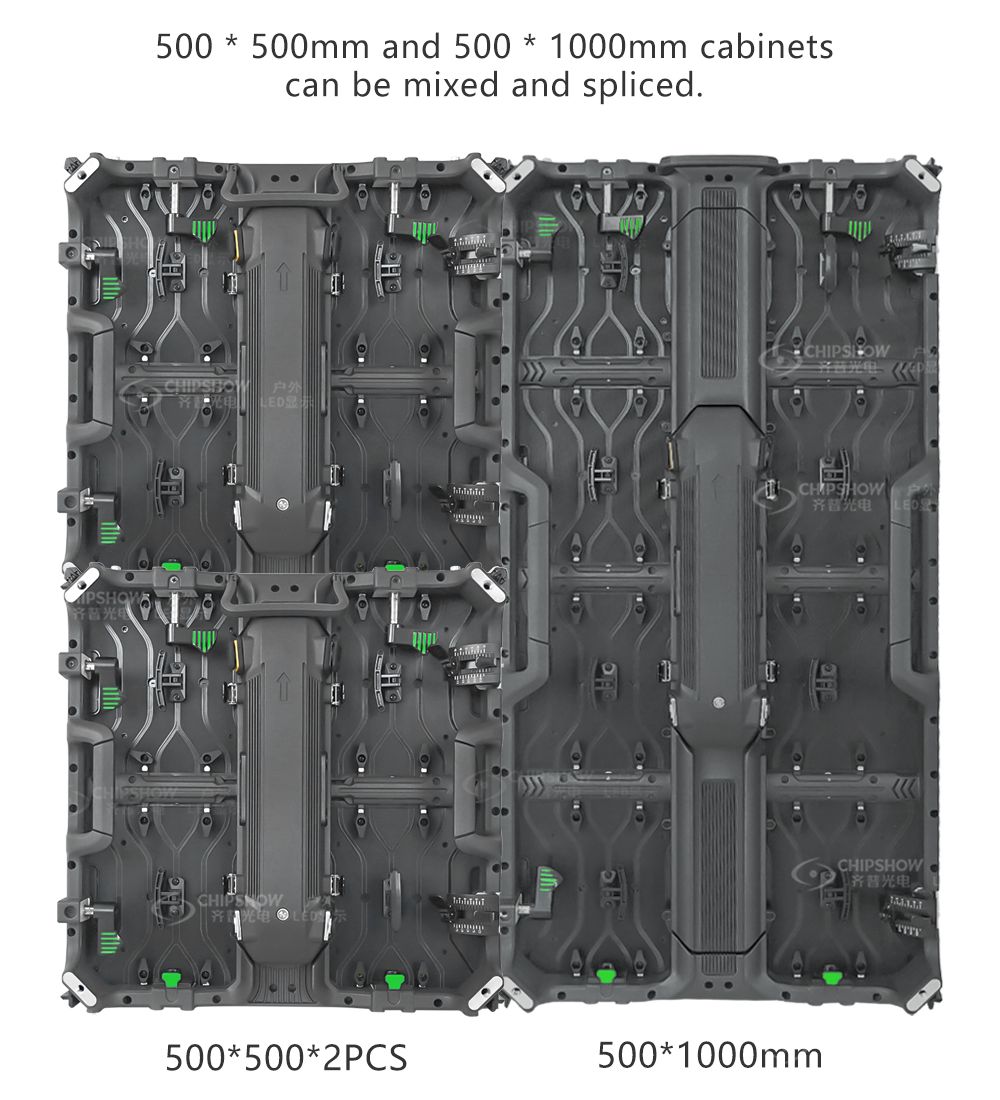

2 There are two optional sizes (500 * 1000mm / 500 * 500mm), and you can combine multiple cabinets into a screen with different shapes according to your needs;

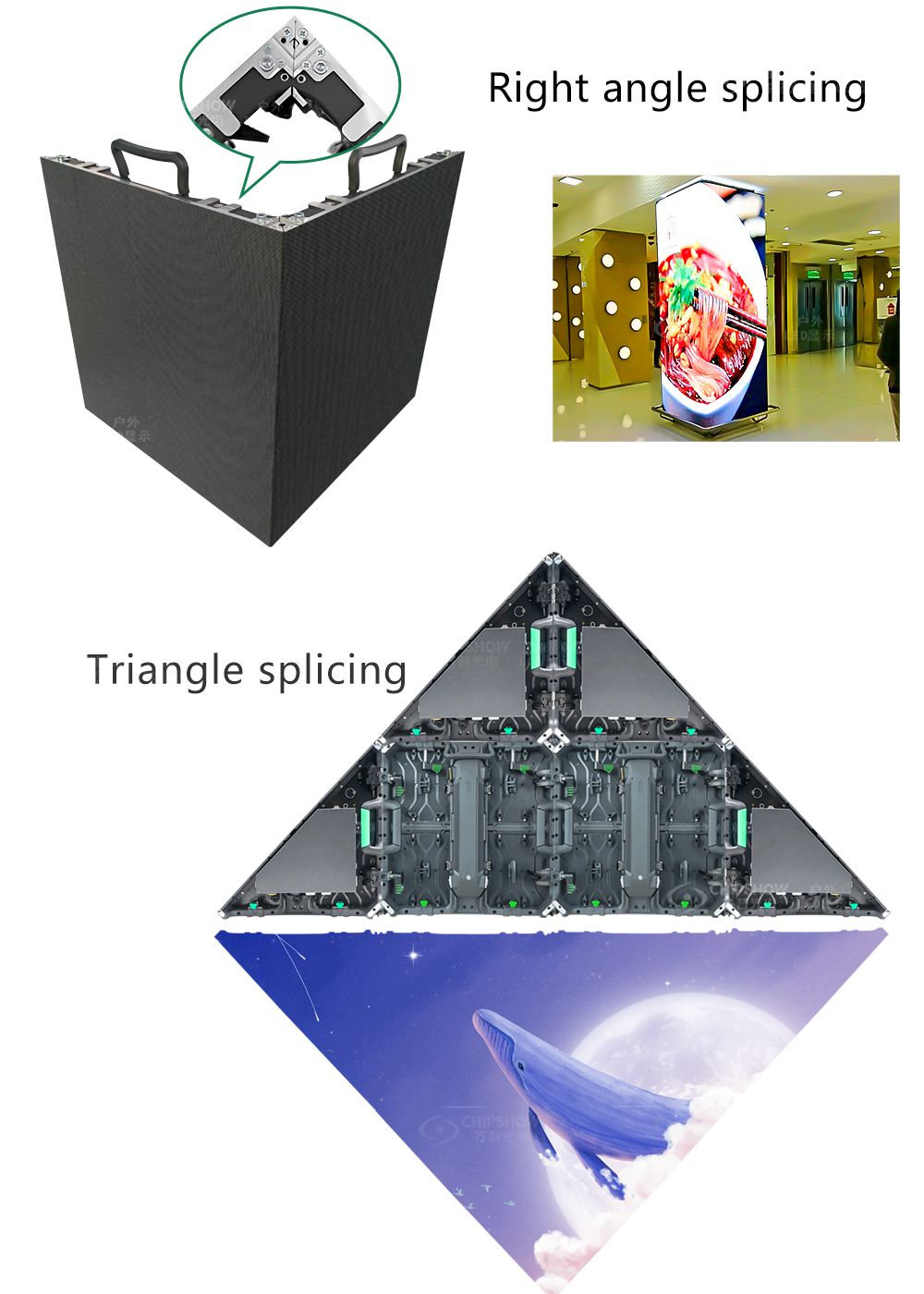

(Triangle splicing example:)

(Right angle splicing example:)

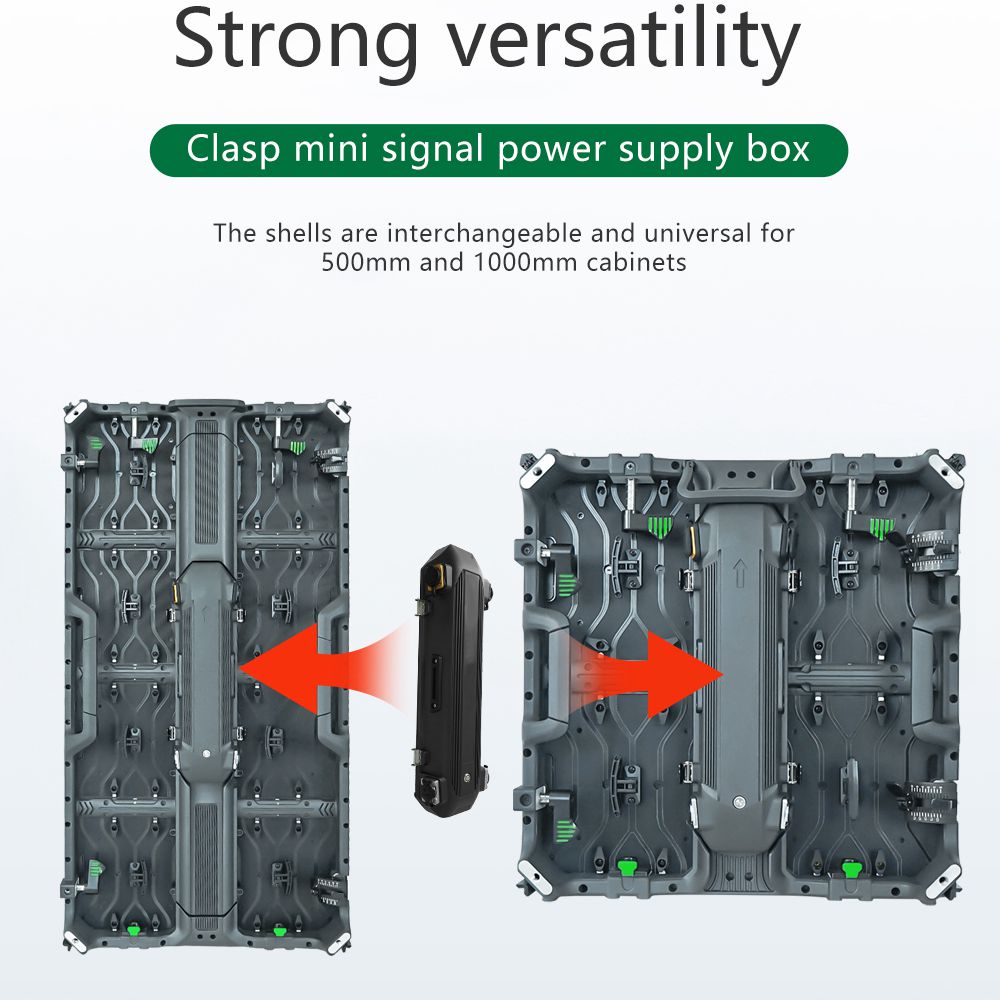

3 The cabinets can share a minimalist mini LED controller, which will save your installation and calibration time greatly;

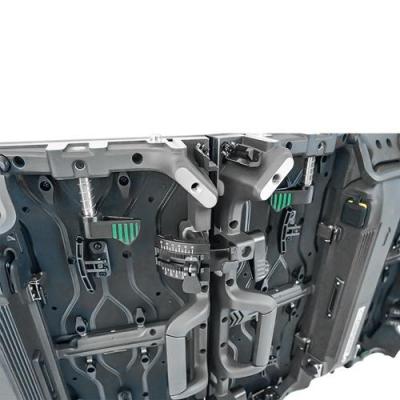

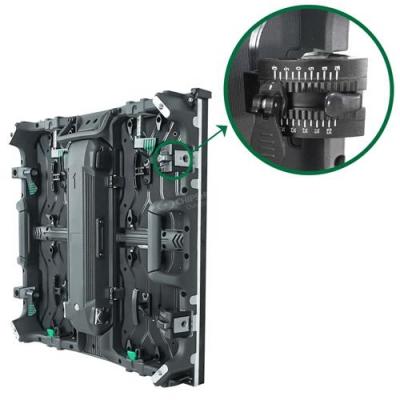

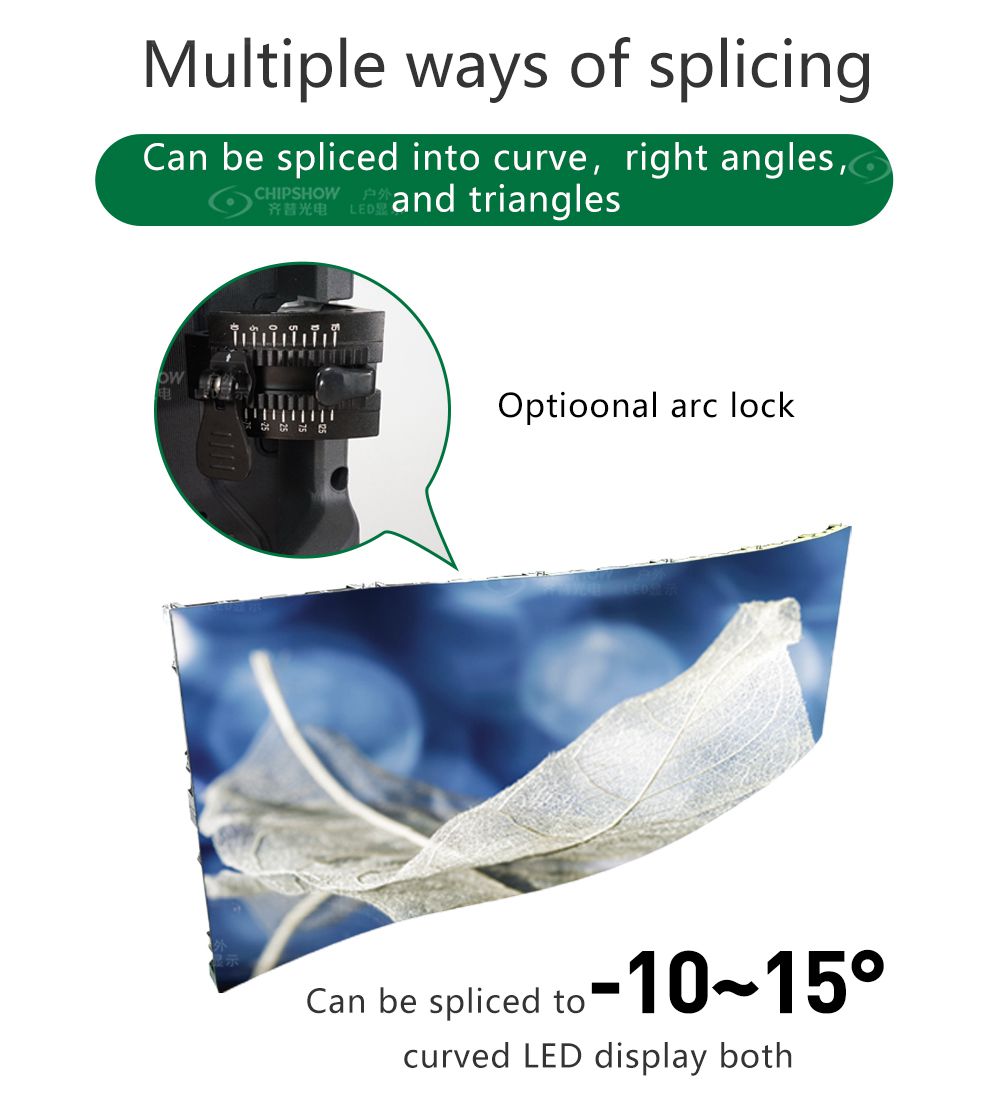

4 You can opt to use curved locks to quickly splice another 90° corner screen with - 10 to 15 ° camber;

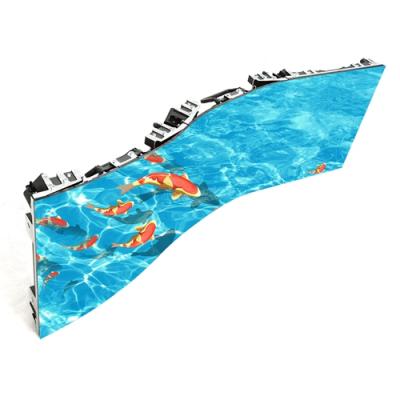

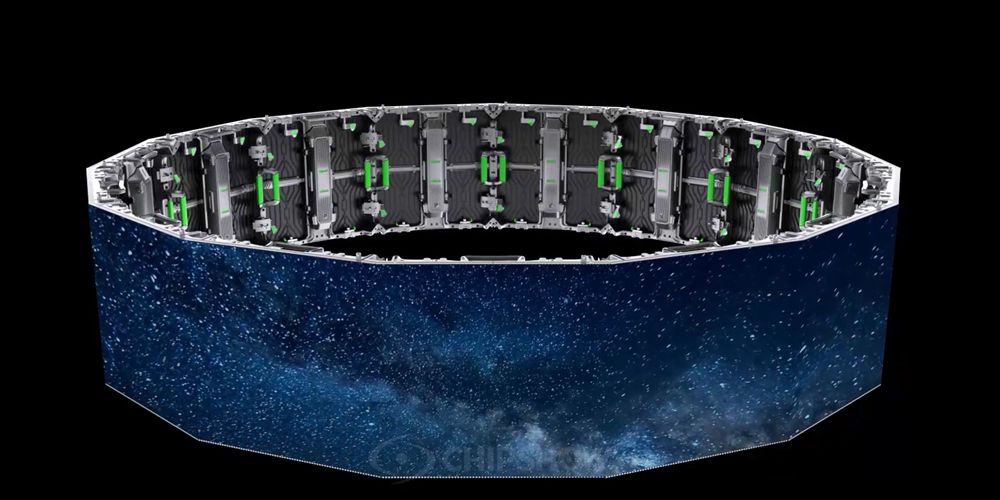

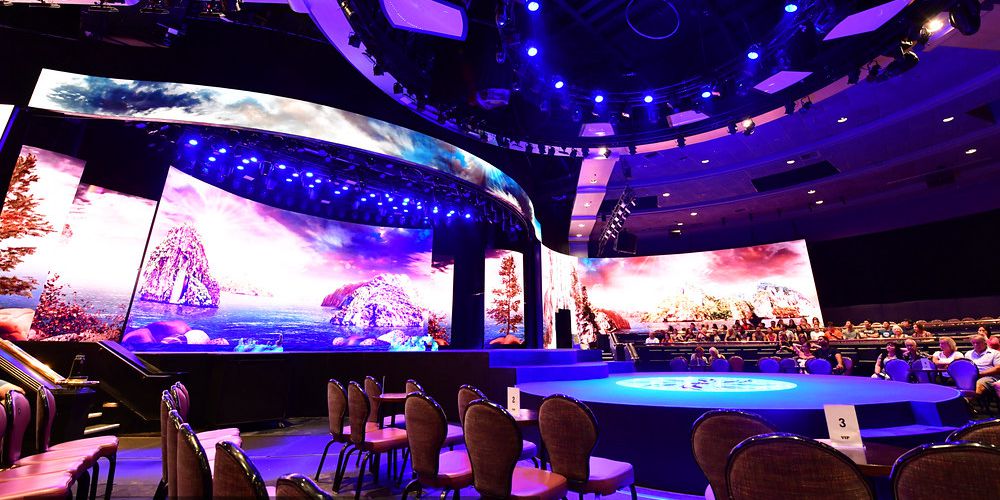

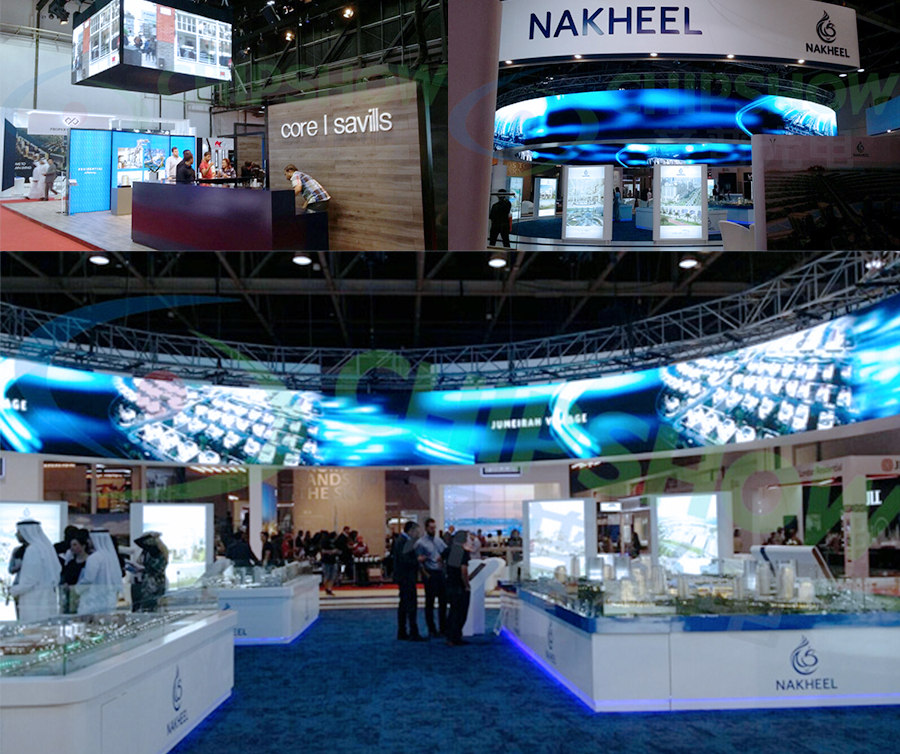

Example of spliced C-Shine curved LED screens:

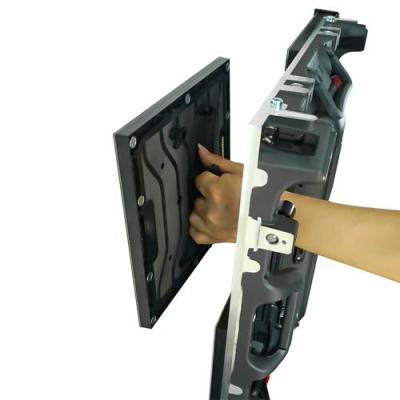

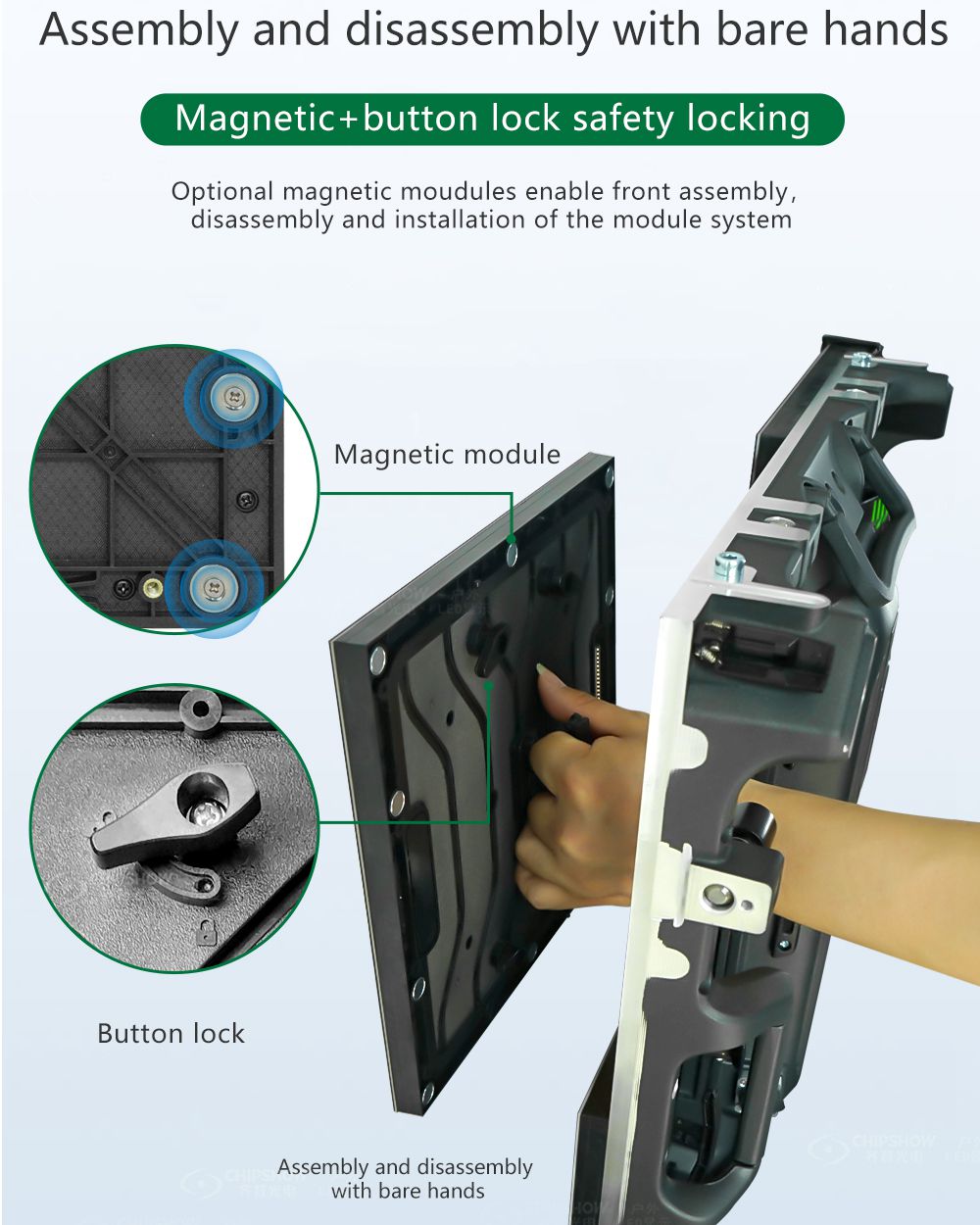

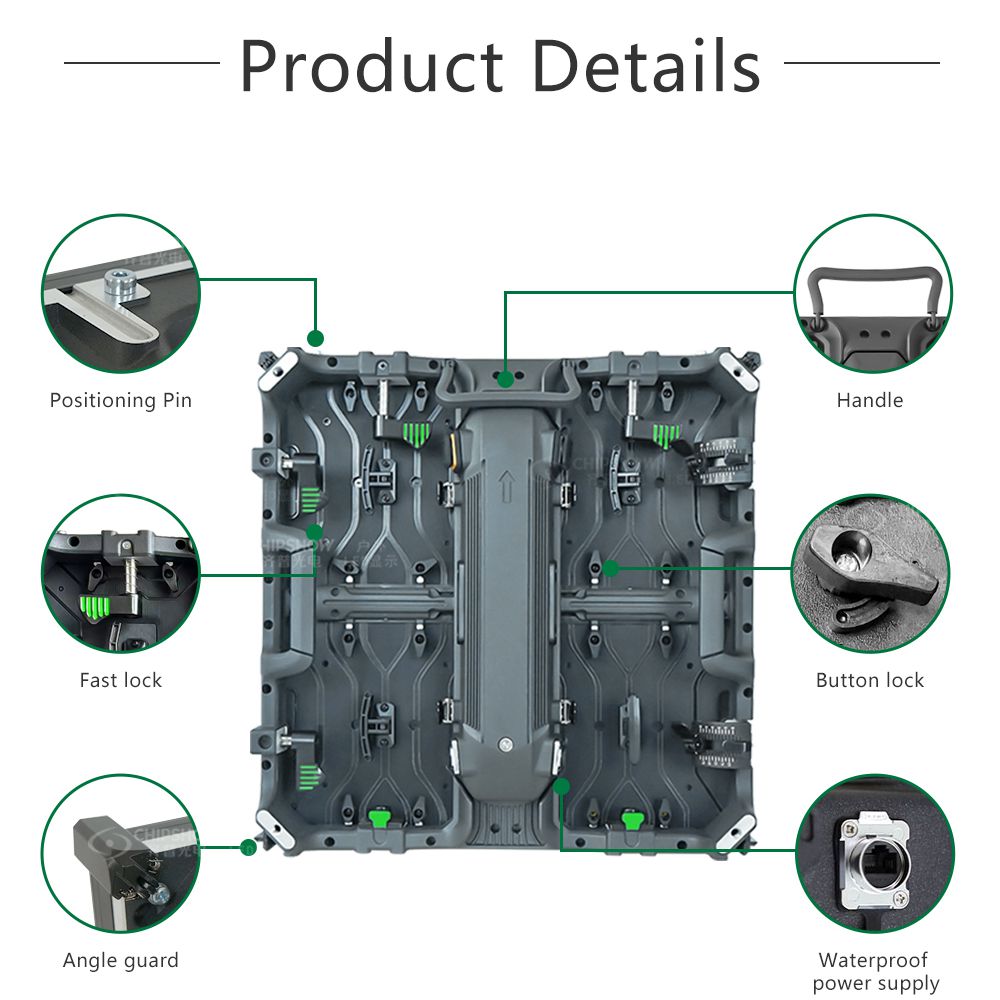

5 The modular button lock design enables you to disassemble, assemble, and maintain the LED screen within several seconds; and the optional magnetic module design can also help you quickly disassemble, assemble, and maintain power supply units and LED modules from the front;

6 While the screen is working, you do not have to worry about the generated noise because there are no fans inside the screen; the noise always stays under 40 decibels; it will not have a disruptive influence on the on-site visual/audio effect;

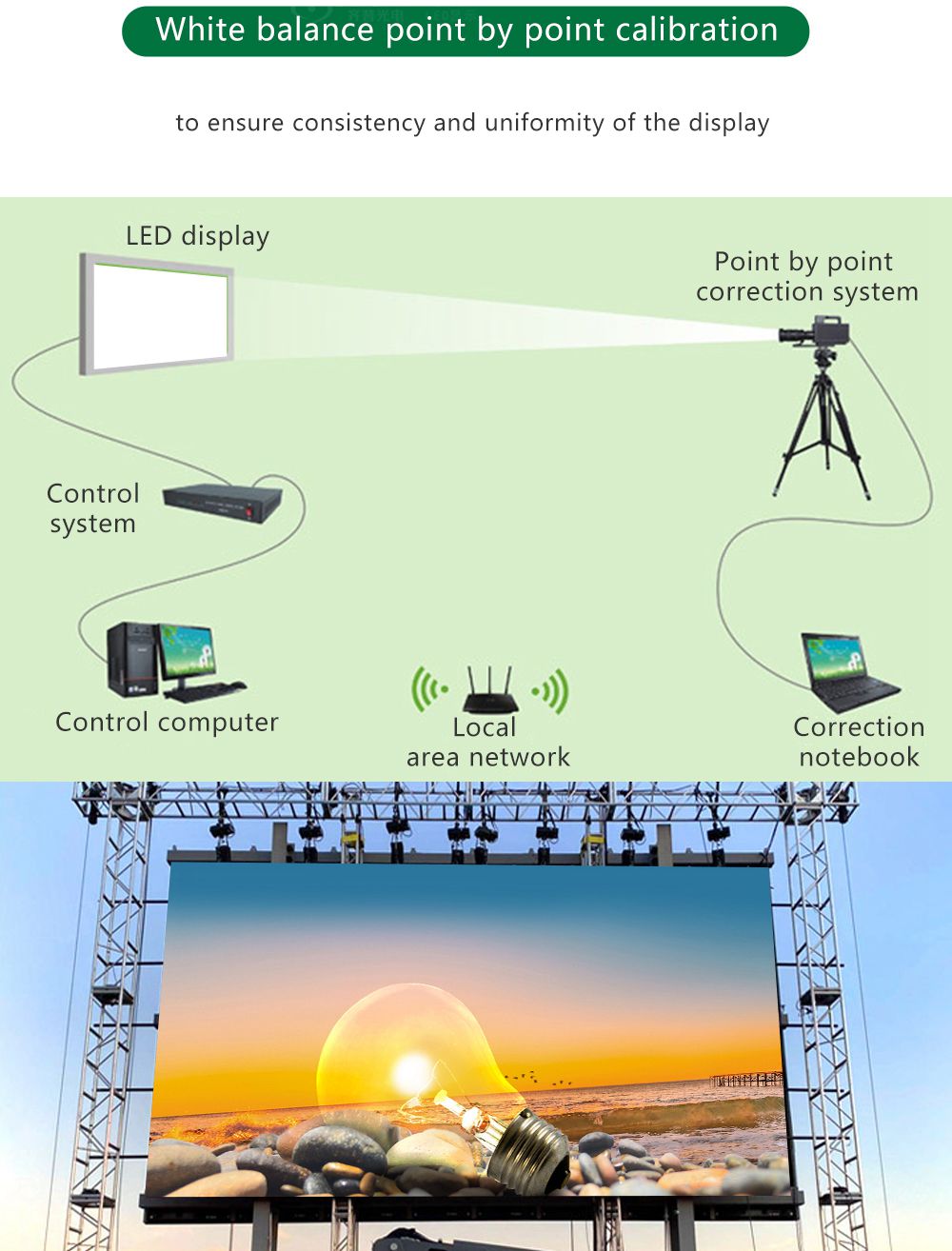

7 The screens adopt white balance point-by-point calibration technology to ensure picture consistency and color uniformity;

8 The screens support an ultra-wide viewing angle (H60°/V140°), therefore, regardless of the viewing angle, audiences can watch the clear and smooth pictures to better enjoy an amazing stage show;

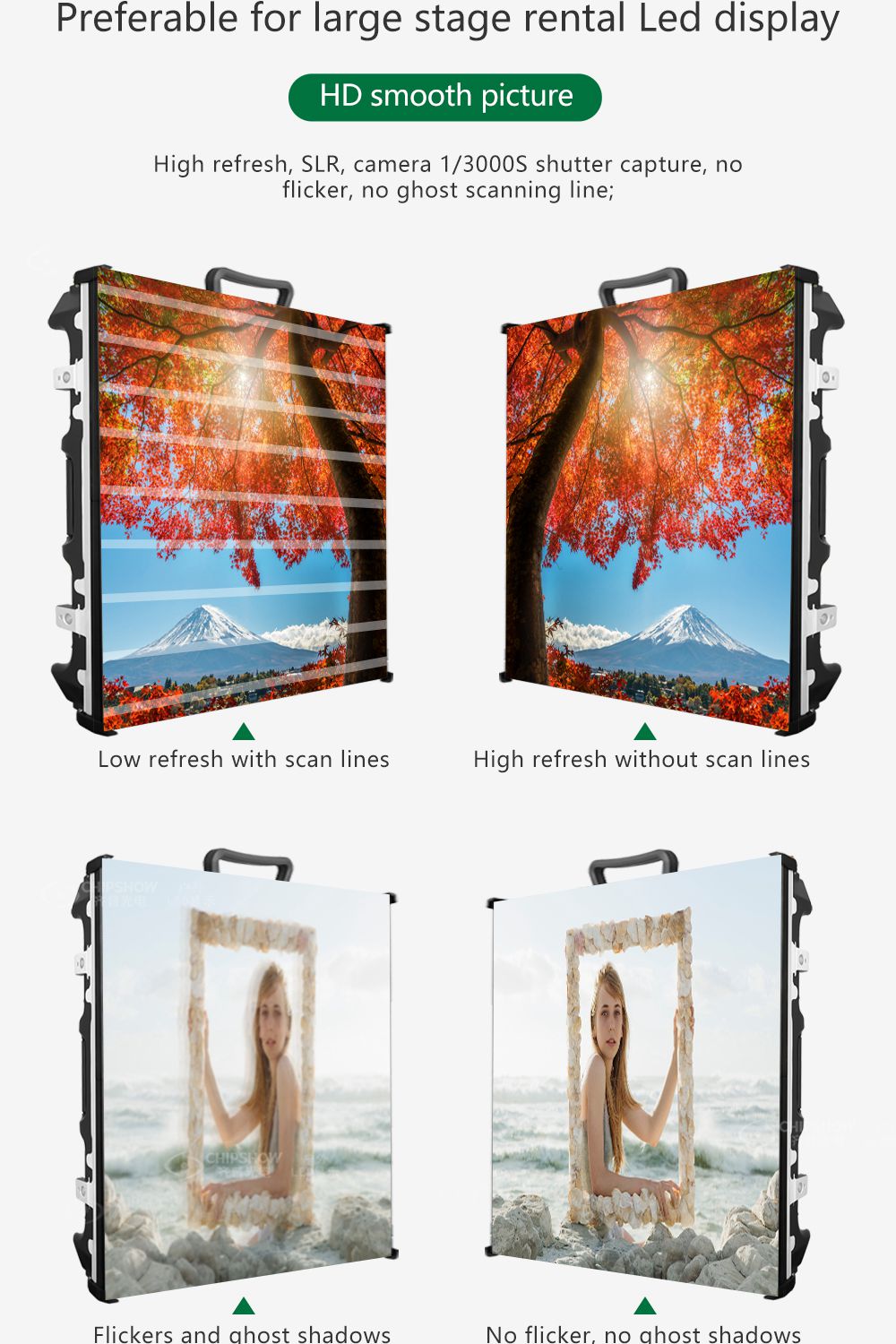

9 The screens are widely used as an optimal large-sized display solution due to a series of excellent performance, such as high refresh, no-ghost scanning line, no flicker, and camera 1/3000s shutter capture;

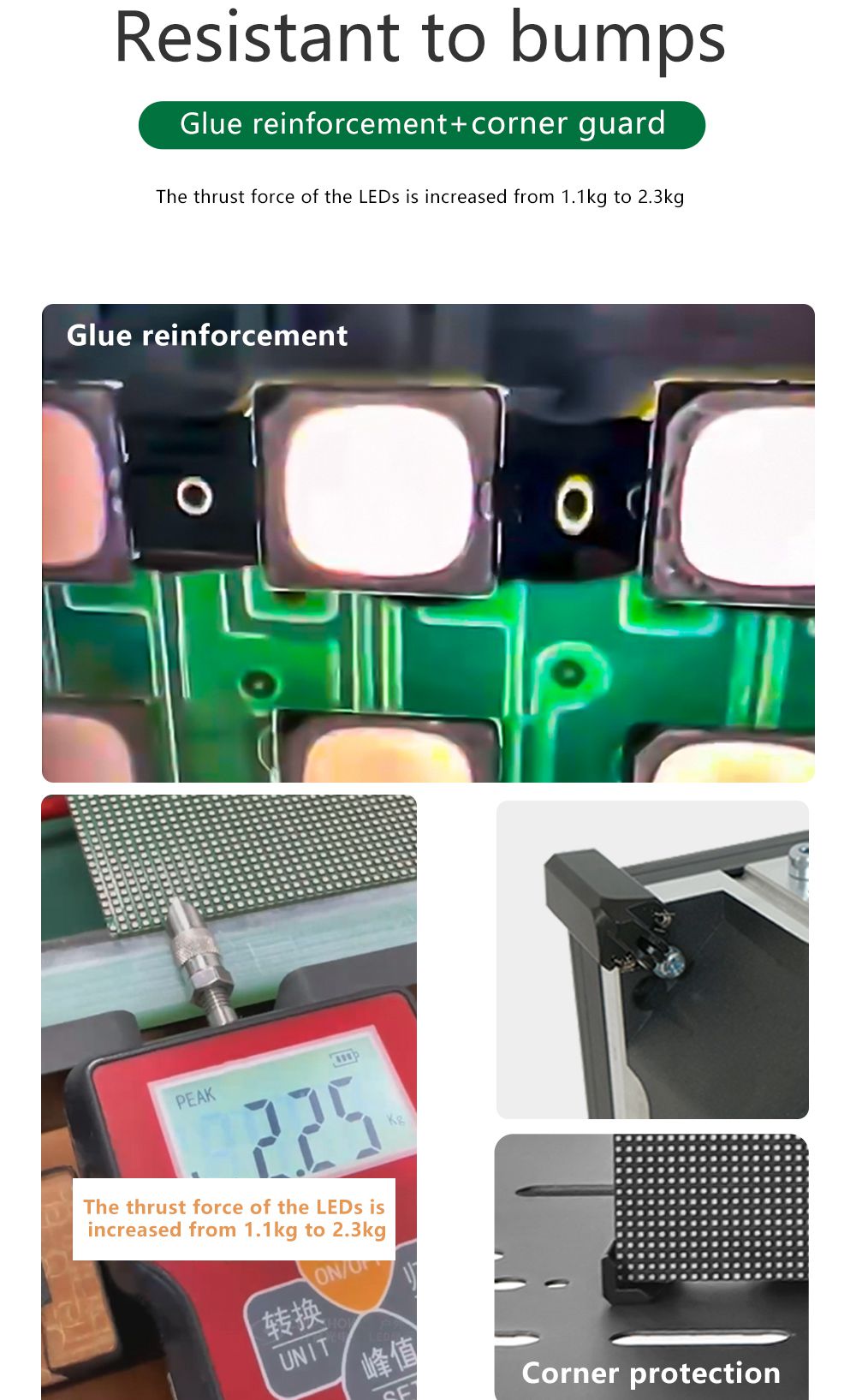

10 Stage Rental LED screens need to be frequently moved, and encounter bumps inevitably; without protection, this may affect a screen’s performance and lifespan; in order to reduce the bad effect, the C-shine series is specially designed to be highly resistant to bumps through corner guard and glue reinforcement;

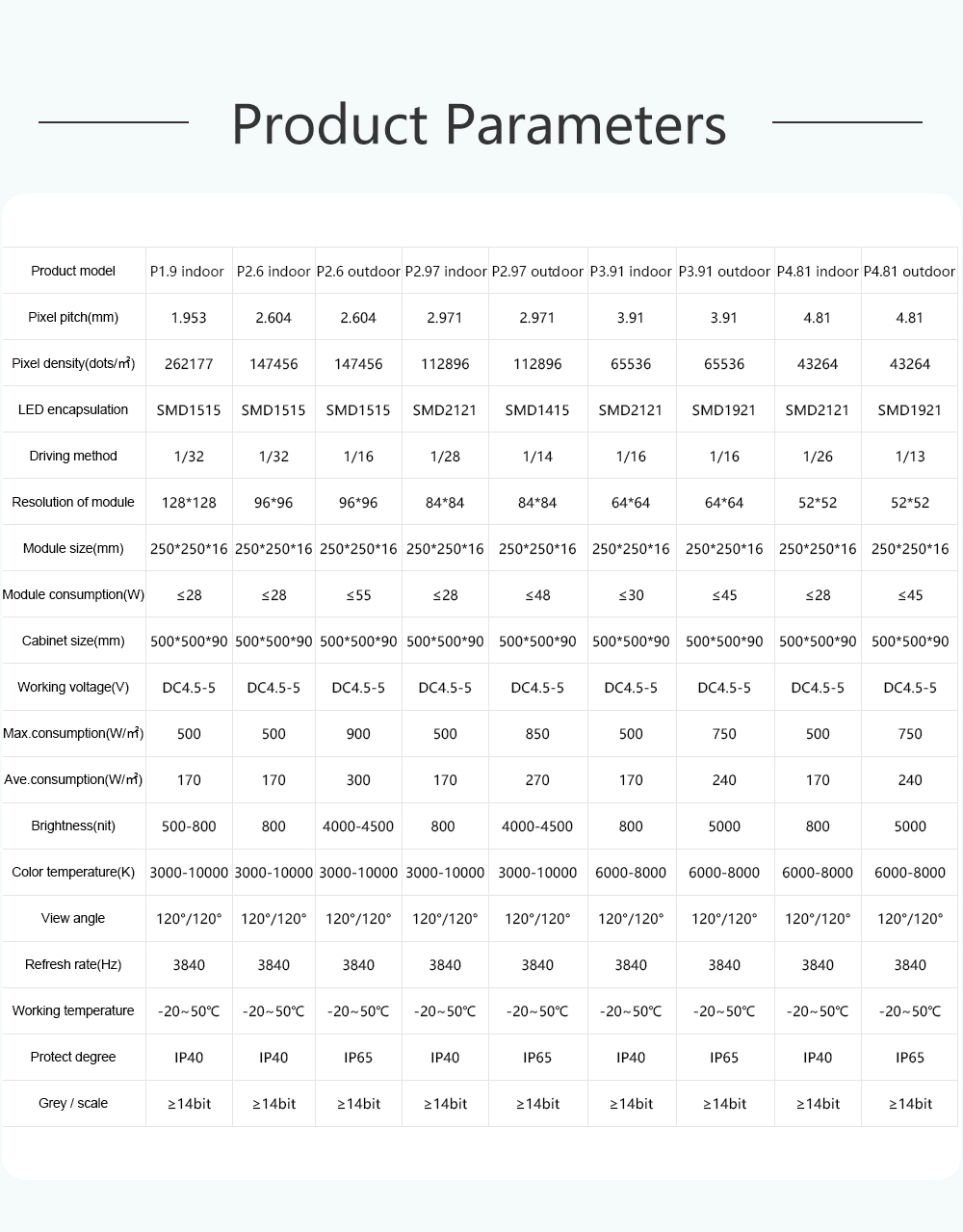

11 The C-Shine series is a comprehensive display solution for indoor and outdoor stages (currently, the available pixel pitches include P1.9, P2.6, P3.91, and P4.81);

12 The common applications of the C-Shine series include LED display solutions for conferences, houses of worship, churches, commercial real estate, and product launches;

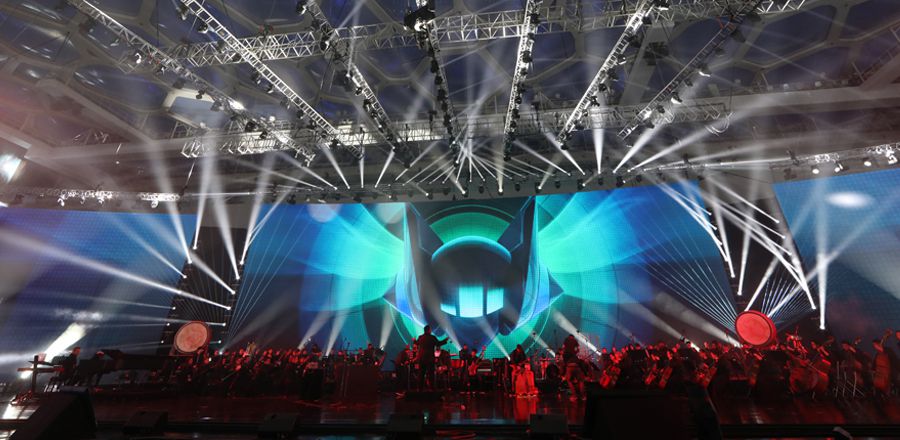

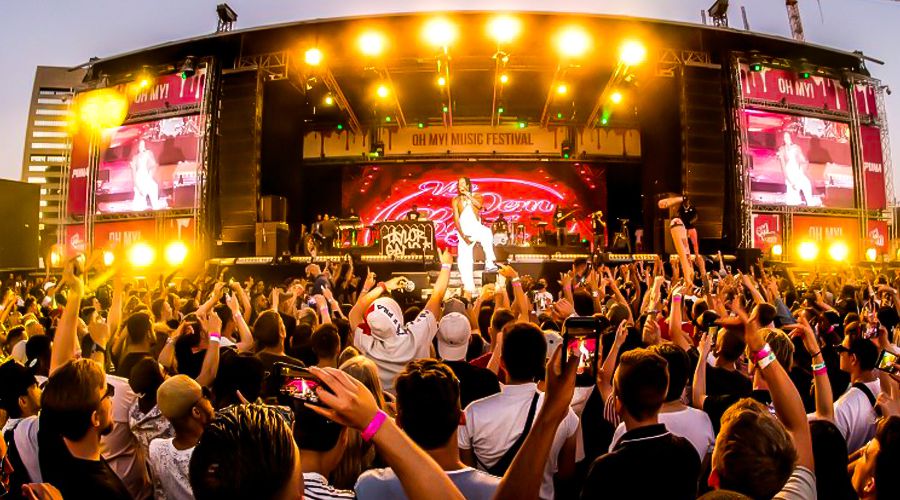

(Outdoor Stage)

(Indoor Stage)

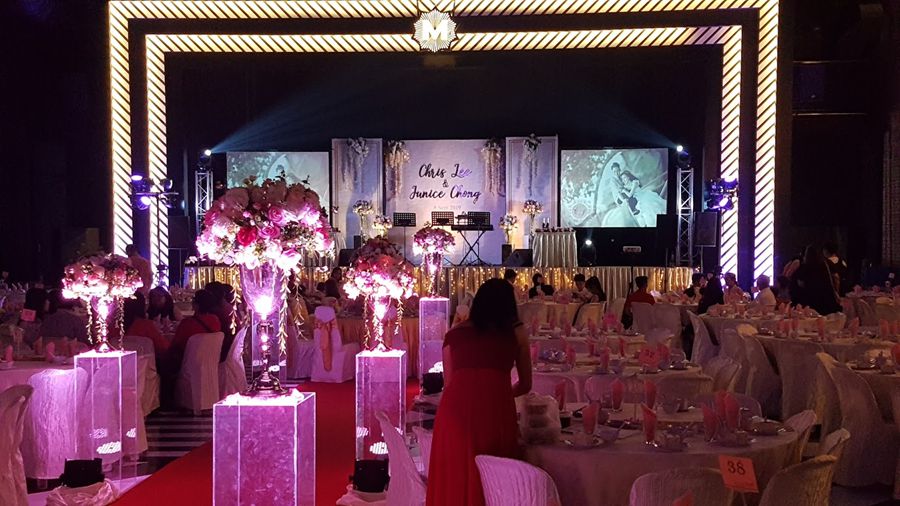

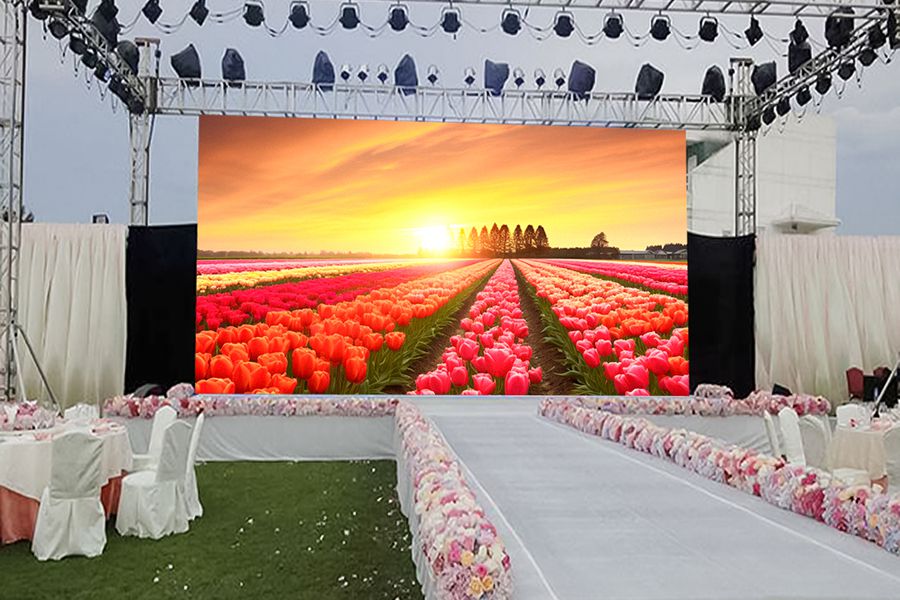

(Wedding)

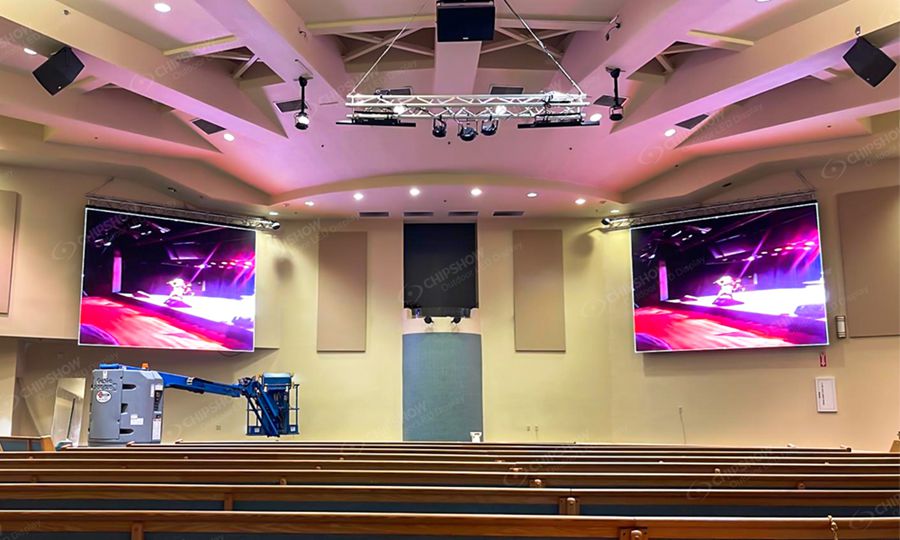

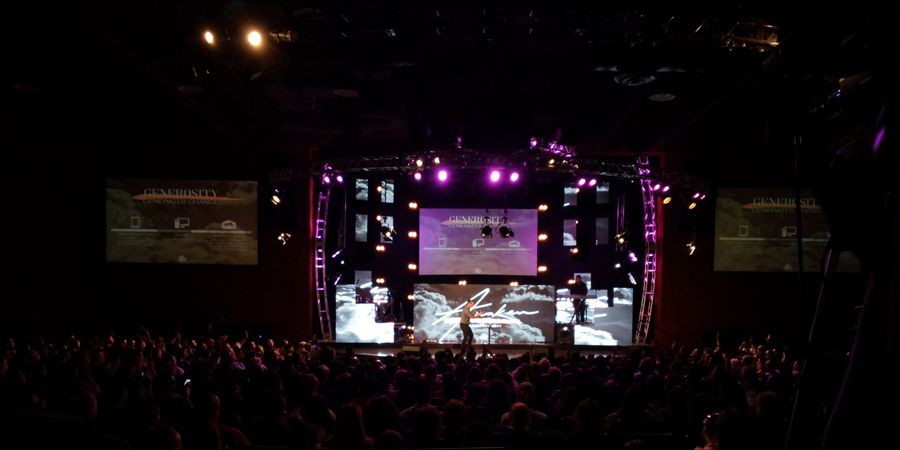

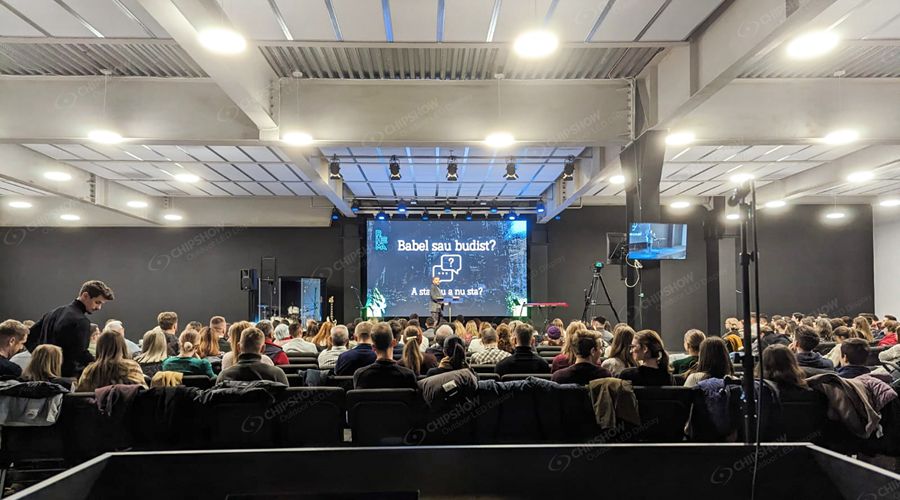

(Churches)

(Real Estate Agents)

(Conferene Room)

Chipshow has more than 20 years of experience in manufacturing LED display screens. If you want to know more about Chipshow, you might check the page:  Chipshow - Professional Indoor & Outdoor LED Display Solutions;
