Item NO.:
C-Lite-plus-P3.91Payment:
T/T,L/CProduct Origin:
Shenzhen,ChinaColor:
full color RGBShipping Port:
Shenzhen,NetherlandsLead Time:
3-25 daysMOQ:
1 sqmWarranty:
2 years
|
Item |
Specification |
|
|
Pixel
Pitch、Resolution rate、size |
3.91mm、64*64、250*250*17mm |
|
|
1R1G1B、 SMD1921 |
|
|
Working
voltage、Module Power |
|
|
|
Driving
IC、Driving way |
ICN2069、1/16 |
|
|
HUB |
HUB(AXS-500X500-PRO)-V1.0 |
|
|
Material、Cabinet Weight(KG/Cabinet) |
Die-cast Aluminum、8kg/cabinet |
|
|
Resolution
rate、size、Module quantity |
128*128Dots、500*500*89mm、2*2 |
|
|
Density |
65536 Dots/㎡ |
|
|
White
balance 、Color temperature |
5500CD/㎡、6000K-8000K |
|
|
View
angel、Non-Flatness、Module interval |
H/V：120°/120°、＜0.2mm、＜0.2mm |
|
|
Maximal
power/㎡、Average power/㎡ |
≤400W/㎡、≤150W/㎡ |
|
|
Frame
frequency、Refresh frequency、Gray grade |
60Hz、3840Hz、≥13bit |
|
|
Control
system、System supports |
CHIPSHOW，Windows XP，WIN 7 |
|
|
Working
temperature、Protection grade |
-20~50℃、Front/Back：IP65/IP54 |

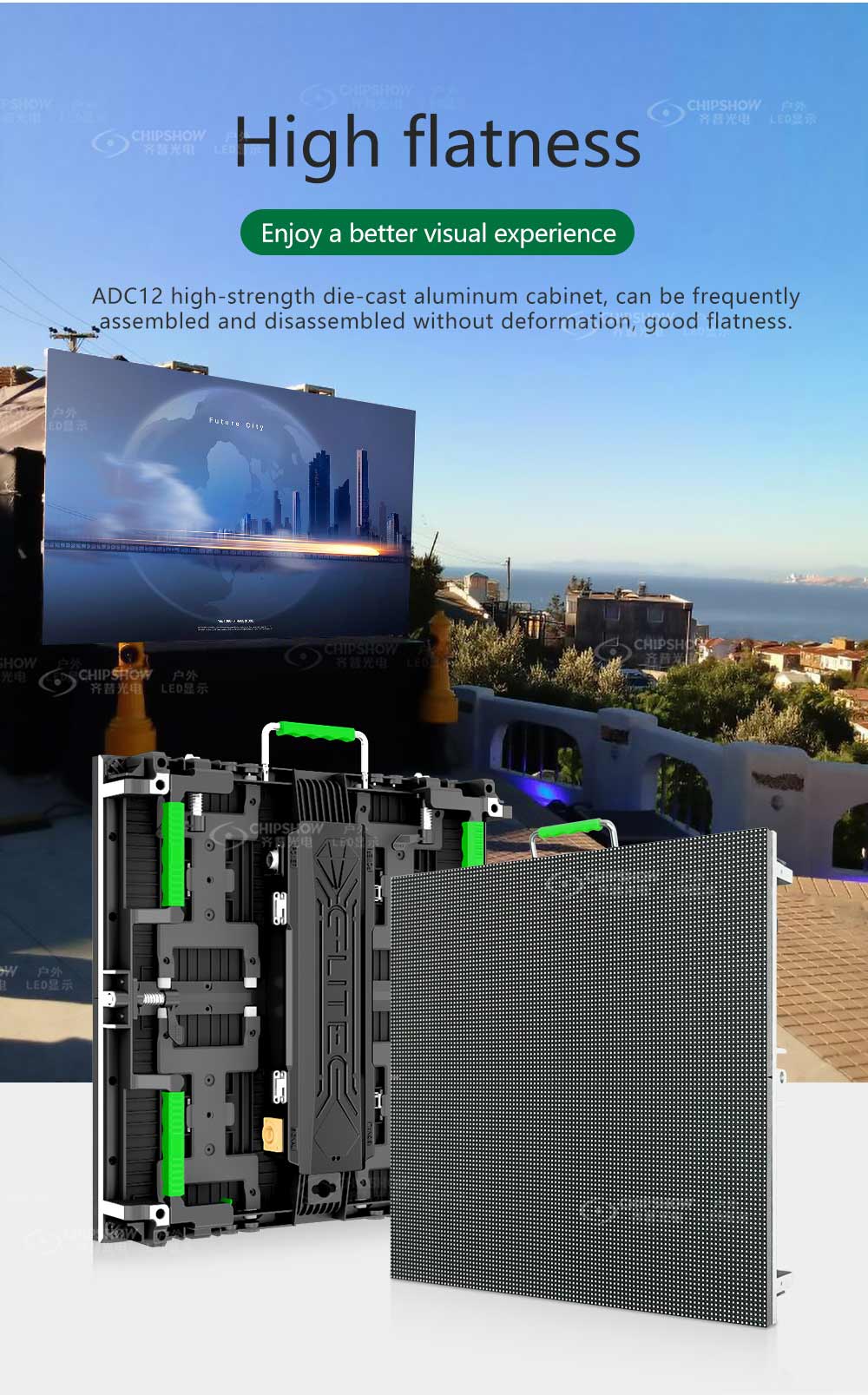

1. Fla：ADC12 high-strength die-cast aluminum cabinet, can be frequently assembled and disassembled
without deformation, good flatness;
2. Practical：The extremely simple and practical design, firm handle, convenient
fast lock, the simplest and most practical;
3. Magnetic locating：Fast and precise locating by the magnetic location pin on cabinet
sides, fast and easy installation for
rental use;
4. Dual service：fast lock module design, easy maintenance from front or back;
5. Economical：Low cost, stable and reliable, and super cost-effective;
u Global hot sale over 50,000 square meters.
Ready stock, fast delivery.
